Application

What you need to know (please read before ordering)

Important: When shipping your BCM and Pump please ensure you package it properly. Place the BCM and pump together in a thick plastic bag to prevent fluid from leaking into the packaging. If the fluid leaks and saturates the box, this will cause the box to break and could cause delays or even possible loss of the module when shipping into our facility. Because the part is heavy, we recommend packaging with lots of protection (bubble wrap, packaging peanuts, etc) to avoid any movement in the box. Not following these instructions could result in additional fees, damages, or even loss of the part. It is the sole responsibility of the shipper if any of these events occur when sending the part to XeMODeX.

This is a Repair service of your existing module. You will need to remove and send your module to us for repair using the shipping labels provided to you.

The order will be processed during our regular business hours (Mon-Fri 8:30 – 5:00 EST). After processing your order, we will email shipping labels and shipping instructions. If you don’t see shipping labels within 1 hour of submitting your order (during business hours) please first check your junk/spam folders. If you still don’t see the labels, please contact us at 1-888-712-2525

Features:

Plug & Play: The software and settings will not be modified, making this module plug and play. No software reload or calibration is required after installation.

Quick Turnaround: Your module will be tested, repaired, tested again, and sent back to you in the same day (unless otherwise noted).

Quality Tested: All ABS modules undergo rigorous tests on our Gen 3 ABS test bed. Please click here for more information.

Lifetime Limited Warranty: This module comes with our Lifetime Limited Warranty. Please see here for more information.

Reference Numbers

LR007209 | LR014067 | LR023390 | LR032897 | LR039938

Common Failure Symptoms

• ABS pump motor performance codes.
• Pump motor will run only when lightly tapped.
• Noisy pump motor operation.
• Blown main fuse for pump motor.
• ABS lights and warning messages are illuminated
• Codes for “Hydraulic Pump Motor” are stored
• Loss of communication
• Pump or solenoid failures
• Wheel speed sensor issues

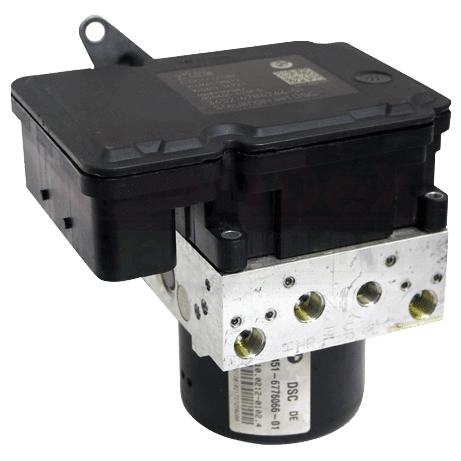

Note* This pump motor is an integral part of the ABS Hydraulic block. Do not attempt to separate it . Send it in together with the hydraulic block and ABS module.

Note*2 In addition to the pump repair, the ABS module must be rebuilt as well. The ABS pump is controlled directly by the ABS module. Worn-out motor will take out main pump driver in the module and it will need to be replaced.

How we test your ABS Module ?

How we open your ABS Module ?

CNC ABS Module Opening

How This Service Works

Step 1: Purchase our repair service online or over the phone.
Step 2: After processing your order, we will email you pre-paid shipping labels.
Step 3: Send us your old defective unit by dropping off the package to any UPS location, or call UPS to schedule a pick up.
Step 4: We will inspect and repair your old module.
Step 5: We will send you back the repaired module the same day (unless otherwise stated).
Step 6: You install the unit back into your vehicle.

For more detailed instructions, please see here.
