Application

What you need to know (please read before ordering) ?

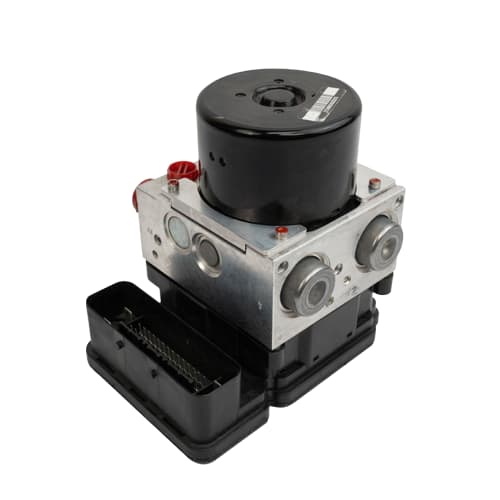

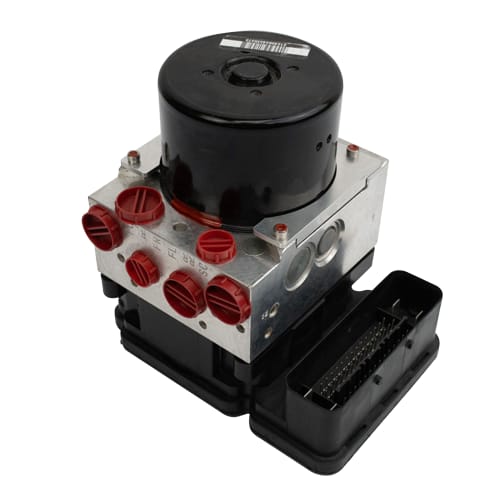

This is a Repair Service of your existing module. You will need to remove and send your module and pump to us for repair using the shipping labels provided to you.

The order will be processed during our regular business hours (Mon-Fri 8:30 – 5:00 EST). After processing your order, we will email shipping labels and shipping instructions. If you do not see shipping labels within 1 hour of submitting your order (during business hours) please first check your junk/spam folders. If you still do not see the labels, please contact us at 1-888-712-2525

Features:

Plug & Play: The software and settings will not be modified, making this module plug and play. No software reload or calibration is required after installation.

Quick Turnaround: Your module will be tested, repaired, tested again, and sent back to you in the same day (unless otherwise noted).

Quality Tested: All ABS modules undergo rigorous tests on our Gen 3 ABS test bed. Please click here for more information.

Lifetime Limited Warranty: This module comes with our Lifetime Limited Warranty. Please see here for more information.

Reference Numbers

57111-TK5-A56 | 57111-TK5-A54 | 57111-TK5-A55 | 57111-TK5-A21 | 57110-TK5-A05 | 57110-TK4-A04 | 57111-TK4-A21 | 57110-TL2-S21 | 57110-TL2-307 | 57110-TL2-S31 | 57110-TL2-308 | 57110-TP1-307 | 57110-TL2-S11 | 57110-TL2-306 | 57110-TL2-S01 | 57110-TL2-S01 | 57110-TL2-305 | 57110-TP1-406 | 57110-TL2-S41 | 57110-TL2-405 | 57110-TP1-405

Common Failure Symptoms

• ABS pump motor performance codes.
• Pump motor will run only when lightly tapped.
• Noisy pump motor operation.
• Blown main fuse for pump motor.
• 01276 -“ABS Hydraulic Pump V64: Implausible Signal.

Note* This pump motor is an integral part of the ABS Hydraulic block. Do not attempt to separate it . Send it in together with the hydraulic block and ABS module.

Note*2 In addition to the pump repair, the ABS module must be rebuilt as well. The ABS pump is controlled directly by the ABS module. Worn-out motor will take out main pump driver in the module and it will need to be replaced.

How we test your ABS Module ?

How we open your ABS Module ?

CNC ABS Module Opening

How This Service Works ?

Step 1: Purchase our service online or over the phone.
Step 2: After processing your order, we will email you pre-paid shipping labels.
Step 3: Send us your old defective unit by dropping off the package to any UPS location or call UPS to schedule a pick- up.
Step 4: We will inspect and repair your old module.
Step 5: We will send you back the repaired module the same day (unless otherwise stated).
Step 6: You install the unit back into your vehicle.

For more detailed instructions, please see here.
