Application

What you need to know (please read before ordering)

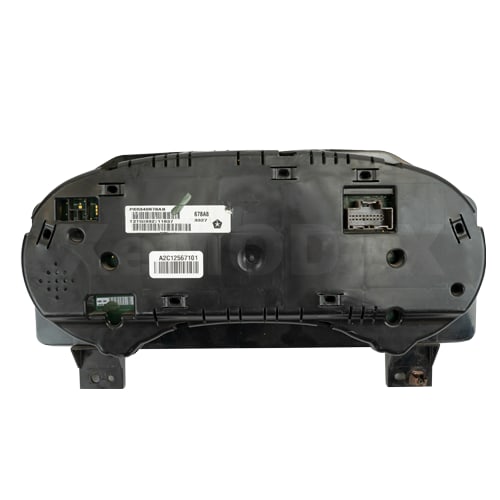

This is a Repair Service of your existing instrument cluster module. You will need to remove and send your cluster to us for repair using the shipping labels provided to you.

The order will be processed during our regular business hours (Mon-Fri 8:30 – 5:00 EST). After processing your order, we will email shipping labels and shipping instructions. If you don’t see shipping labels within 1 hour of submitting your order (during business hours) please first check your junk/spam folders. If you still don’t see the labels, please contact us at 1-888-712-2525

Features:

Plug & Play: The software and settings will not be modified, making this module plug and play. No software reload or calibration is required after installation.

Quick Turnaround: Your module will be tested, repaired, tested again, and sent back to you in the same day (unless otherwise noted).

Completely Reworked PCB: All internal circuit boards are tested at the component level. Any known prone-to-failure parts that are close to the maximum tolerance are automatically replaced.

Quality Tested: All our instrument clusters undergo rigorous tests on our specialized custom built CAN-bus driven test bed. All functions, DTCs, and software are checked and verified for proper operation.

Quality Tested: All our instrument clusters undergo rigorous tests on our specialized custom built CAN-bus driven test bed. All functions, DTCs, and software are checked and verified for proper operation.

Reference Numbers

56046545AK | 56046542AK | 56046542AC | 56046542AD | 56046542AE | 56046542AF | 56046542AG | 56046542AH | 56046542AI | 56046542AJ | 56054962AF| 56054962AA | 56054962AB | 56054962AC | 56054962AD | 56054962AE

Common Failure Symptoms

• Backlights don’t work partially of completely out.
• Faded center display, or not working at all.
• Gauges issues.
• Cluster does not work at all.
• Interior lighting not working.

How This Service Works

Step 1: Purchase our repair service online or over the phone.
Step 2: After processing your order, we will email you pre-paid shipping labels.
Step 3: Send us your old defective unit by dropping off the package to any UPS location, or call UPS to schedule a pick up.
Step 4: We will inspect and repair your old module.
Step 5: We will send you back the repaired module the same day (unless otherwise stated).
Step 6: You install the unit back into your vehicle.

For more detailed instructions, please see here.
