Application

What you need to know (please read before ordering)

Important: Not for use with vehicles with Dynamic Stability Traction Control (DSTC). If your vehicle has DSTC, please see our BCM repair service here. If you are unsure if your vehicle has DSTC, look for the DSTC button on the center console. If you’re still unsure, please contact us with your VIN number and we’ll check for you.

This is a Pre-Programmed Replacement for your existing module. After processing your order we will ship the module to the shipping address you provided. If a core fee is applicable, there will be return labels inside the box. Please return the core to us within 30 days for a core fee refund. Please refer to our Core Policy here to ensure a full core fee refund.

The order will be processed during our regular business hours (Mon-Fri 8:30 – 5:00 EST). If the order is submitted after 4:30 PM EST it will be processed and shipped next business day.

Features:

Plug & Play: This module is plug and play. No software reload or calibration is required.
Thermal Cooling Upgrade: All BCMs include an anodized aluminum cover to help dissipate heat and lower the MCU’s operating temperature.

Factory Software: This module comes with factory software and does not require programming. Plug and Play!

Non-Destructive Case Opening: A special press is used to separate the plastic ABS case. The factory seams are preserved. Once reassembled the module is fully sealed. No cut or oozing silicon.

Completely Reworked PCB: All internal circuit boards are tested at the component level. Any known prone-to-failure parts that are close to the maximum tolerance are automatically replaced.

Quality Tested: All our ABS modules undergo rigorous tests on our specialized custom built CAN-bus driven test bed. All functions, DTCs, and software are checked and verified for proper operation.

Lifetime Limited Warranty: This module comes with our Lifetime Limited Warranty. Please see here for more information.

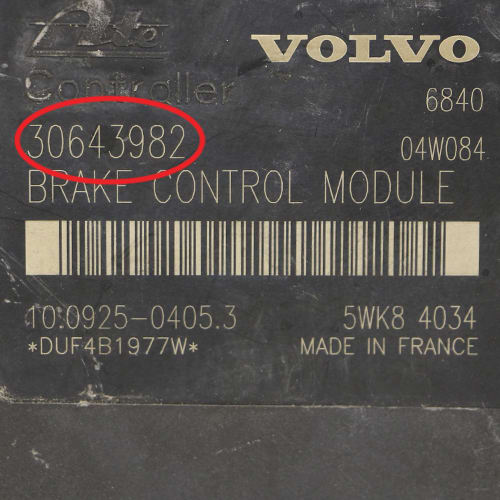

Reference Numbers

30643982 | 30793453

Common Failure Symptoms

• No Communication
• ABS light on

How This Service Works

Step 1: Purchase the module online or over the phone.
Step 2: We will program one of our remanufactured units based on the information provided.
Step 3: We will send you the remanufactured module the same day of processing your order.
Step 4: You install the module into your vehicle.
Step 5: You send us back your original module using the supplied shipping labels found in the box of your new part.
Step 6: After receiving your core, we will issue a core charge refund back to your credit card.

For more detailed instructions, please see here.

FAQ

What goes wrong with this Brake Control Module?
These modules are prone to overheat, which damages components over time which can result in loss of network communication and the module becoming unresponsive. This is just one example of the importance of proper heat dissipation.

Other common failures include damaged pump drivers and CAN-Bus controllers.

What is improved?

We have designed and built a custom heat sink and incorporated the design into a large aluminum cover made from anodized aluminum. The powder-coated surface provides excellent resistance to harsh chemicals, especially highly corrosive brake fluid. In our final tests, we were able to reduce the processors operating temperature by 20 percent which is a remarkable accomplishment considering it’s mounted in a hot engine compartment. Together, with high-quality silicone replacement components used, you can rest assured that our BCM will last throughout the life of your vehicle, and we guarantee it with a Lifetime Limited Warranty!

Why can’t you provide a Pre-Programmed BCM for vehicles equipped with DSTC?
BCMs for vehicles with DSTC work closely with the yaw rate sensor, and that extra software makes it nearly impossible to properly match up what software package is required for your vehicle.

My vehicle has DSTC. Is it possible to swap in a BCM from another vehicle with DSTC?
Possible? Yes. But the likelihood of it working properly is very low.

Are there any options for Brake Control Modules from vehicle equipped with DSTC?
Yes. You’ll get a product that’s just as good with our repair and return service here. And since the module is the original from the vehicle, there won’t be any software conflicts.

Technical Resources

How we test your BCM

BCM Removal Instructions

BCM Case Opening

Introduction to Volvo

BCM Diagnostic Flowchart for
2005 – 2009 S60
2005 – 2006 S80
2005 – 2007 V70
2005 – 2007 XC70
2005 – 2013 XC90
