Bosch 9.0 ABS Assembly for 2020 – 2024 Ford Transit Service Options

Bosch 9.0 ABS Assembly for 2020 - 2024 Ford Transit

Service Options

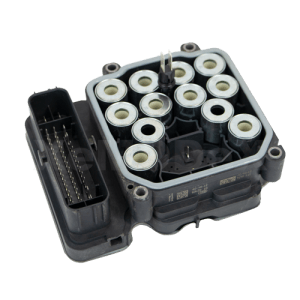

The ABS assembly has 3 components:

  • A The module
  • B The hydraulic pump
  • C The hydraulic block

Compare your faults with the list below to see the options best for you. If you’re unsure which component is faulty, contact us or see our testing service here.

For detailed information about this module, check out our blog post here.

Service Options

SYMPTOMS ASSOCIATED WITH A FAULTY MODULE

  • ABS internal fault codes
  • No communication with ABS module
  • Wheel speed sensor codes
  • ABS solenoid codes
  • Hydraulic valves codes
  • MIL requested by the ABS module
Repair Service

SYMPTOMS ASSOCIATED WITH A FAULTY PUMP

  • ABS pump motor performance codes
  • Pump motor will run only when lightly tapped
  • Noisy pump motor operation
  • Blown main fuse for pump motor
Repair Service

SYMPTOMS ASSOCIATED WITH A FAULTY HYDRAULIC BLOCK

  • Spongy, soft brake pedal
  • No fluid getting to one of the calipers
  • Brakes are continuously applied
  • Red-hot brakes
  • Brakes can’t be bled
  • Locked brakes. Pressure is released when one of the bleeders is open

Note: Brake pressure sensor codes are not repairable

Repair Service

Module Information

Application

2020 – 2024 FordTransit 150
2020 – 2024 FordTransit 250
2020 – 2024 FordTransit 350
2020 – 2024 FordTransit 350HD

Reference Numbers

LK4Z-2B373-A | MK4Z-2B373-A | MK4Z-2C219-A | MK4Z-2C219-B | MK4Z-2C219-C | MK4Z-2C219-D | MK4Z-2C219-E | MK4Z-2C219-F | NK4Z-2B373-A | NK4Z-2B373-A | NK4Z-2B373-B | NK4Z-2B373-C | NK4Z-2B373-D

And More
