The Fork Position Sensor for Porsche PDK Transmission
For Porsche 911, Porsche Cayman and Porsche Boxster, equipped with ZF DT70, ZF DT45 PDK Transmission Now Available
The Most Advanced Fork Position Sensor on the Market

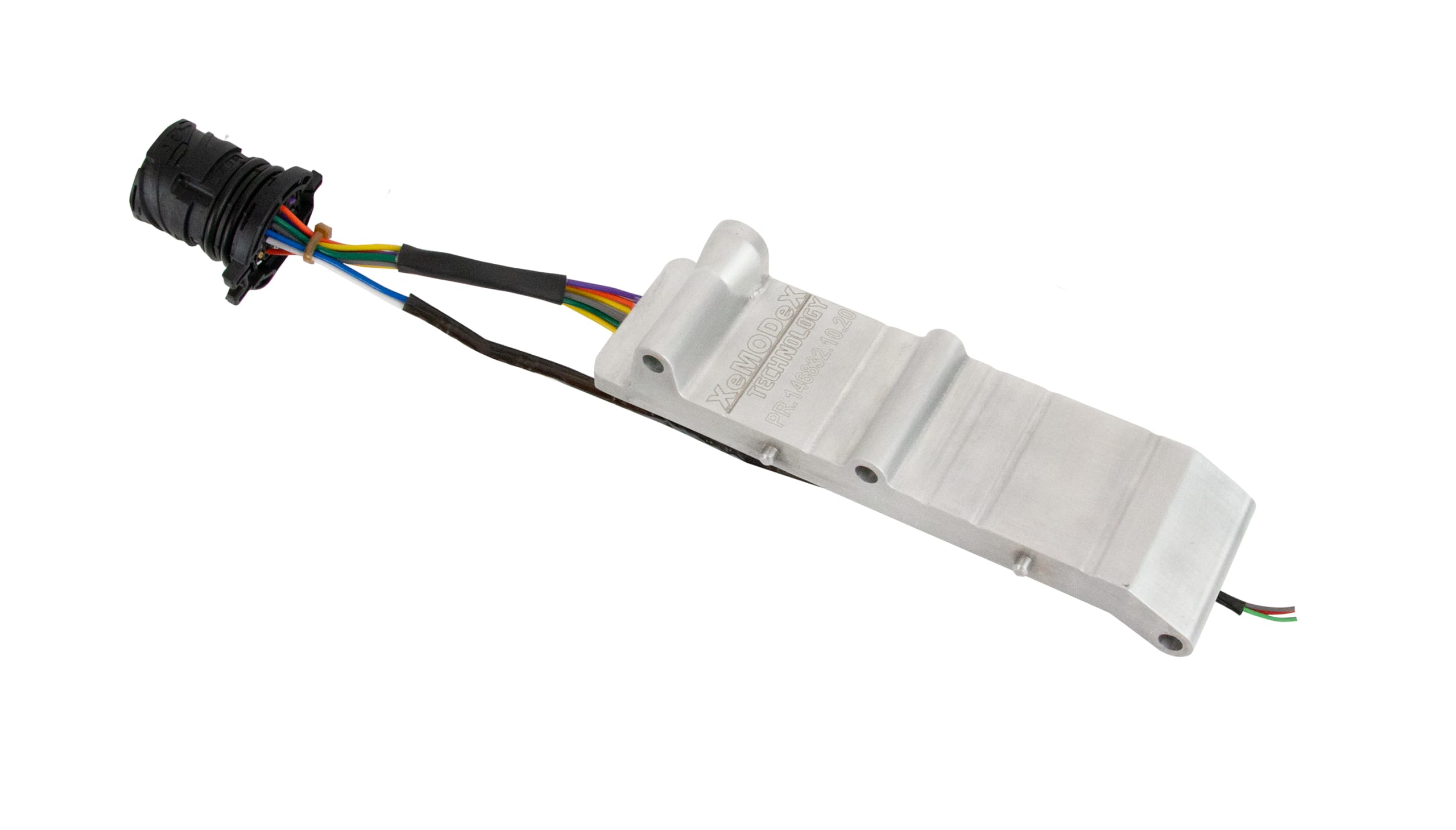

This is a brand-new Fork Position Sensor, manufactured by XeMODeX Inc. The Sensor is now available as a direct replacement part for Porsche PDK Transmissions. Our Fork Position Sensor uses the latest components in automotive electronics applications to surpass the OEM design. Our sensor is designed to work in an extreme high temperature environment and is backed by our Lifetime Limited Warranty.
Fork Position Sensor failure commonly occurs in vehicles with PDK Transmissions, such as the Porsche 997, 991, 987 and 981 models. OEM replacement sensors are not available through the dealership or its transmission supplier, ZF. The only option is to buy a new PDK transmission (MSRP is around $25,000 dollars). We are offering our replacement Fork Position Sensor at a fraction of that cost.
170℃/ 338℉
Sustained operating
temperatures
Engineered by
XeMODeX Inc.
6061
CNC machined
aluminum block
Proudly manufactured
in Canada
AEC-Q200 Automotive Standards for Electronic Components
Grade
Temperature Range ℃
Temperature Range ℉
Application
-40 to 170℃
-40 to 338℉
XeMODeX Fork Position Sensor
0
-50 to +150℃
-58 to 302℉
All automotive
1
-40 to +125℃
-40 to 257℉
Under hood componenets
2
-40 to +105℃
-40 to 221℉
Passenger compartment ( Hot spot)
3
-40 to +85℃
-40 to 185℉
Most passenger compartments
The Last Fork Position Sensor you will Ever Buy
We are confident that our Fork Position Sensor will last for the rest of the service life of the vehicle, and we are backing it with our Lifetime Limited Warranty.
HIGHER
HEAT
TOLERANCE VS. OEM
EXTREMELY ACCURATE
PWM LINEAR SENSORS
CIRCUIT
BOARD
ENGINEERED & MANUFACTURED IN-HOUSE

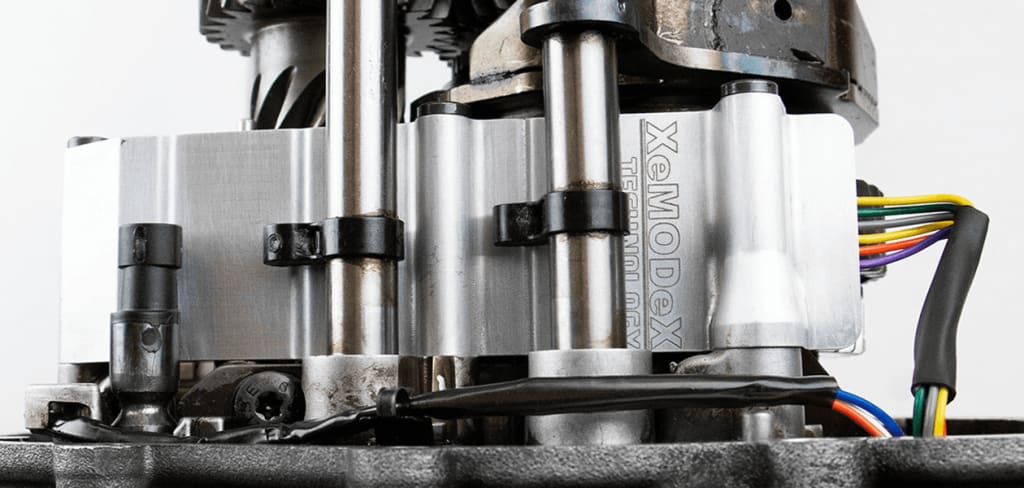

XeMODeX Fork Position Sensor Installed
Common Diagnostic Trouble Codes
DTC Codes
Description
P1731
Shift rod 1 displacement sensor
P1732
Shift rod 2 displacement sensor
P1733
Shift rod 3 displacement sensor
P1734
Shift rod 4 displacement sensor

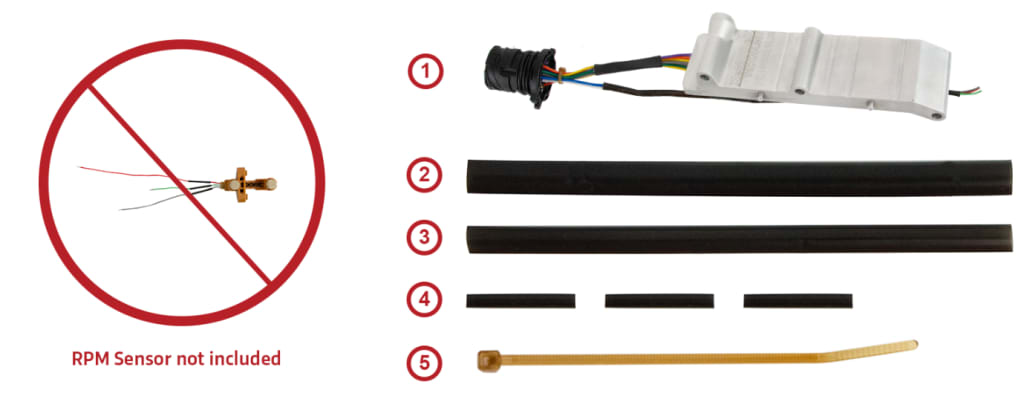

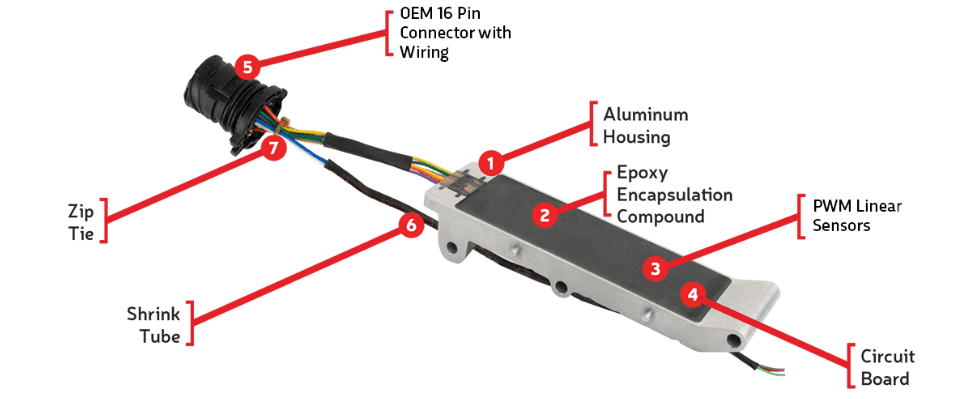

What's Included in Our Kit
Every XeMODeX Fork Sensor will also come with the following items:
Fork Position Sensor
Shrink Tube 1 (3/16 - 5 inches long)
Shrink Tube 2 (1/4 - 5 inches long)
Shrink Tube 3 (1/16 - 1 x 3 long)
Zip Tie
Surpassing the OEM
We’ve designed our Fork Position Sensor from the ground up. Explore the reasons why you should choose us over the OEM.

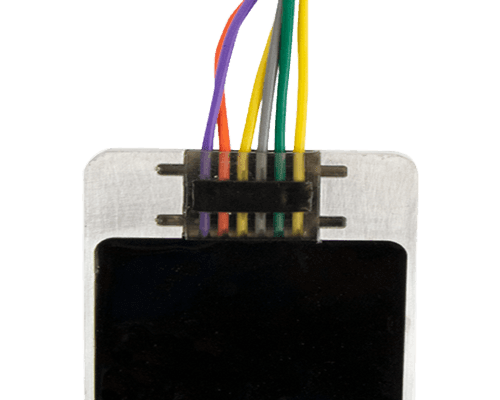

6061 Aluminum Housing
Epoxy Encapsulation

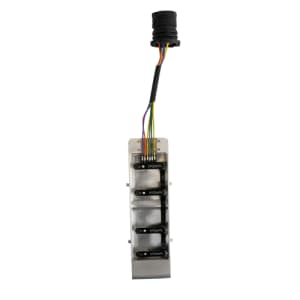

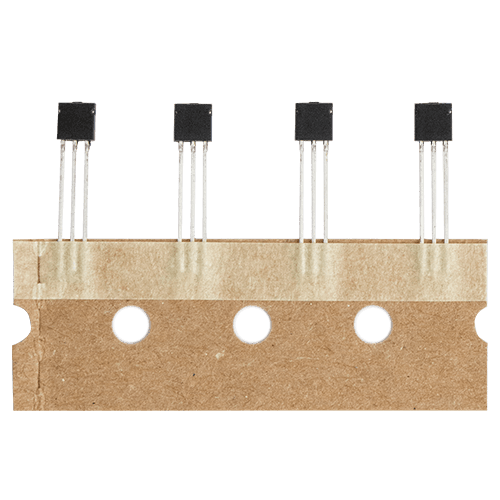

PWM Linear Sensors

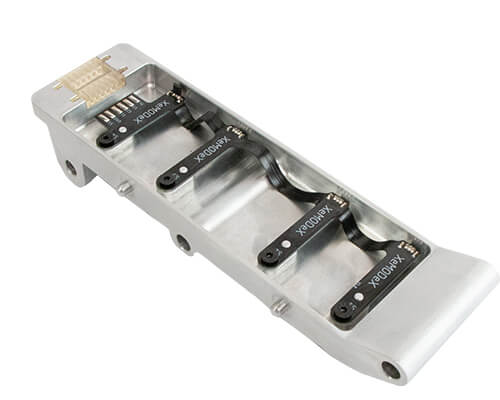

Engineered by XeMODeX

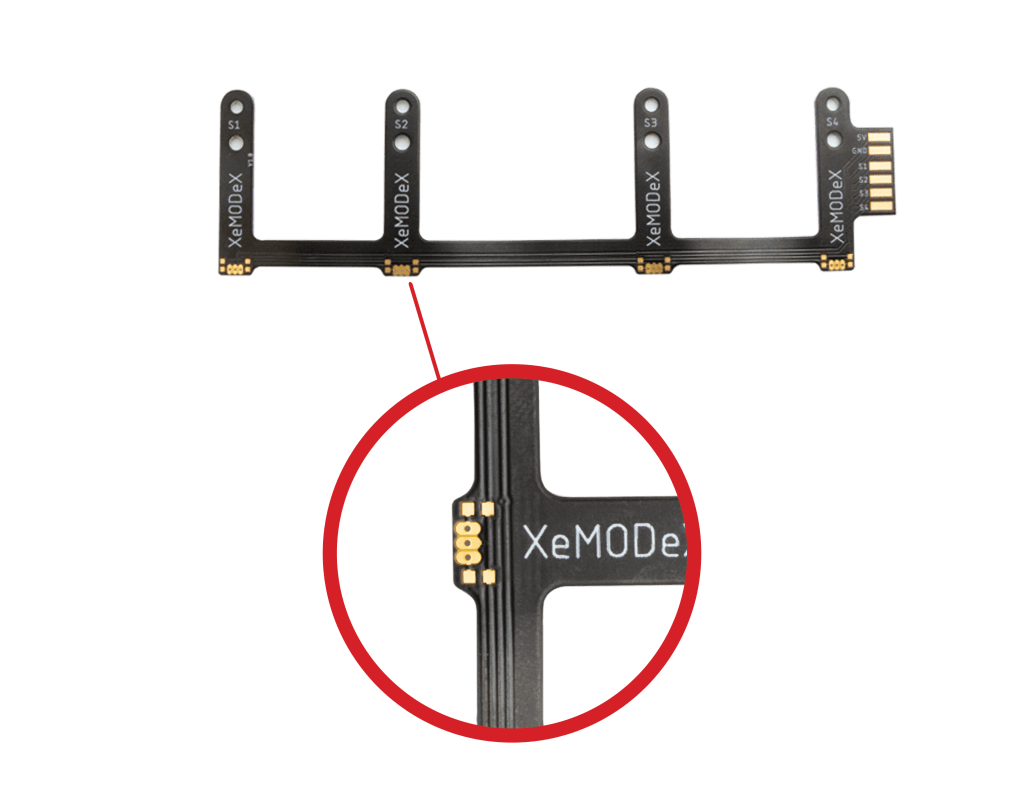

Our circuit board was designed in-house. It is made from polyimide flex with a tensile strength of 2500 psi (@ 25°C) and an Immersion Gold (ENIG) surface finish. The operating temperatures are between TJ= -125°C to +200°C (Tj= -193°F to +392°F).

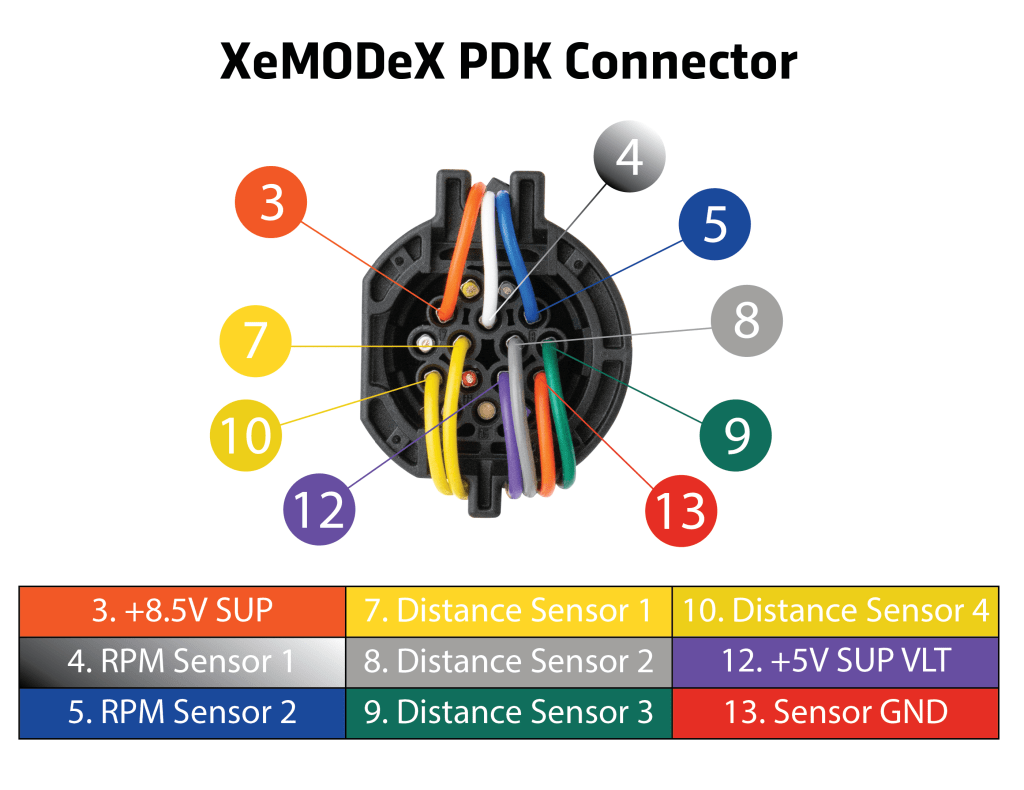

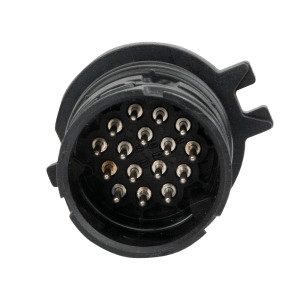

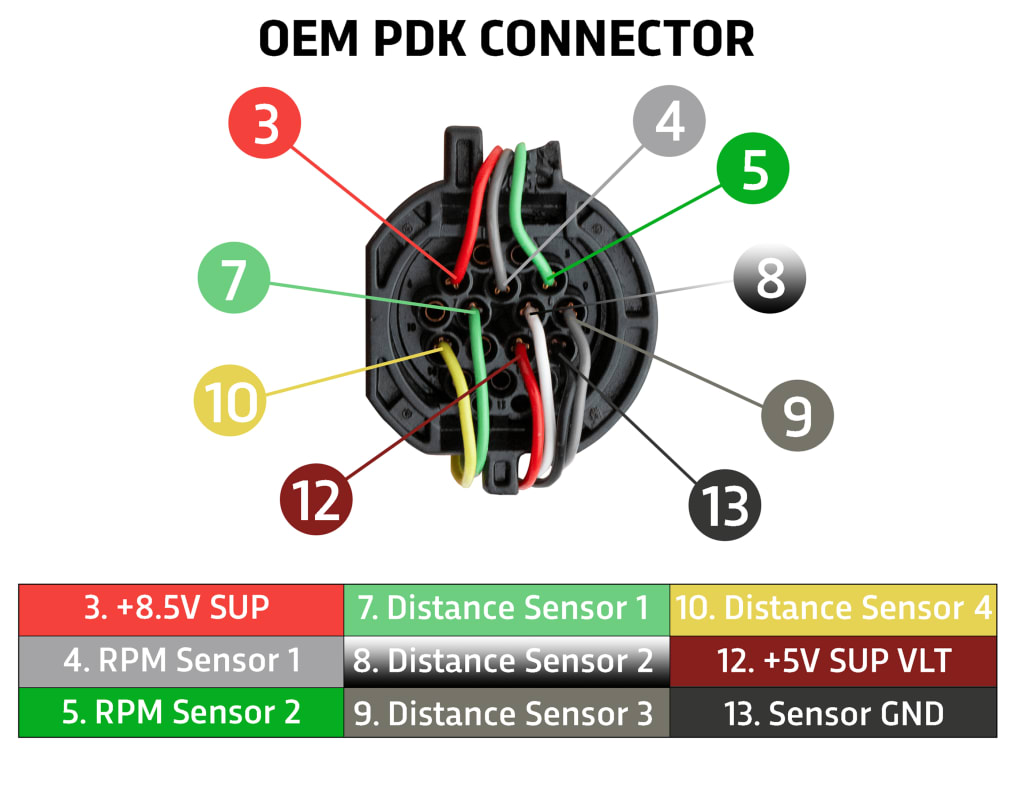

OEM Connector

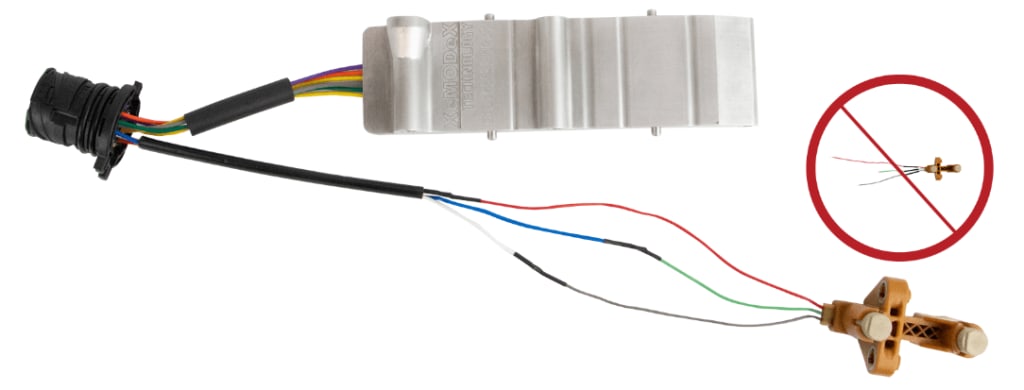

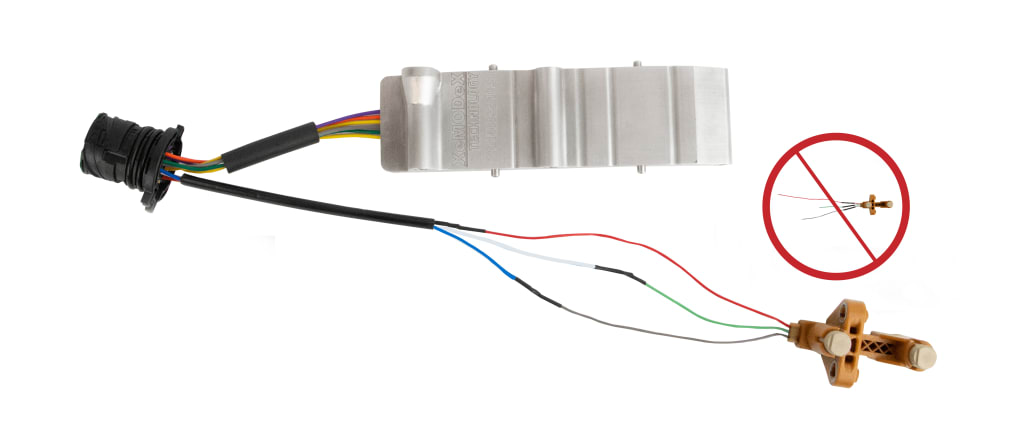

Transferring the RPM Sensor
