Bosch 9.0 ABS Module (38 Pin) for Ford Service Options

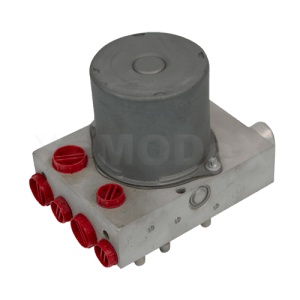

Bosch 9.0 ABS Module (38 Pin) for Ford

Service Options

The ABS assembly has 3 components:

  • A The module
  • B The hydraulic pump
  • C The hydraulic block

Compare your faults with the list below to see what service is best for you.

Service Options

SYMPTOMS ASSOCIATED WITH A FAULTY MODULE

  • No communication with ABS module
  • Invalid data received from the ABS module
  • Wheel speed sensor codes
  • ABS valves supply voltage codes

SYMPTOMS ASSOCIATED WITH A FAULTY PUMP

  • ABS pump motor performance codes
  • Pump motor will run only when lightly tapped
  • Noisy pump motor operation
  • Blown main fuse for pump motor

SYMPTOMS ASSOCIATED WITH A FAULTY HYDRAULIC BLOCK

  • Spongy soft brake pedal
  • The brake pedal goes to the floor
  • Brakes cannot be bled. Brake fluid doesn’t flow out of one of the calipers
  • Locked brakes. The vehicle cannot be moved
  • Overheating partially applied brakes
  • Vehicle pulls to one side when braking

Module Information

Application

2014-2019FordFlex
2015-2017 FordF150
2017-2022 FordF250
2017-2022 FordF350
2017-2022 FordF450
2017-2022 FordF450
2019-2023 FordRanger
2013-2019 FordTaurus

Reference Numbers

DA8Z-2C215-C | DG1Z-2C405-C | FA8Z-2C215-A | FA8Z2C215B | FG1Z-2C215-A | FG1Z-2C219-C | FG1Z-2C405-A | FL3Z-2C215-B | FL3Z-2C219-C | GL3Z-2C215-B | GL3Z-2C219-C | HC3Z-2C286-A | HC3Z-2C286-C | HC3Z-2C286-E | HL3Z-2C215-C | HL3Z-2C219-C | LC3Z-2C215-A | NC3Z-2C215-A




And More
